3-WAY ADJUSTABLE CONCEALED HINGE (E160)

SKU :

Thin profile allows for shallow mortise and makes installation easier Jig (sold separately) makes installation easy.

เลือกสี

Share

  • Thin profile allows for shallow mortise and makes installation easier Jig (sold separately) makes installation easy.
  • Has a fire safety rating of ANSI/UL 10C, CAN/ULC-S104

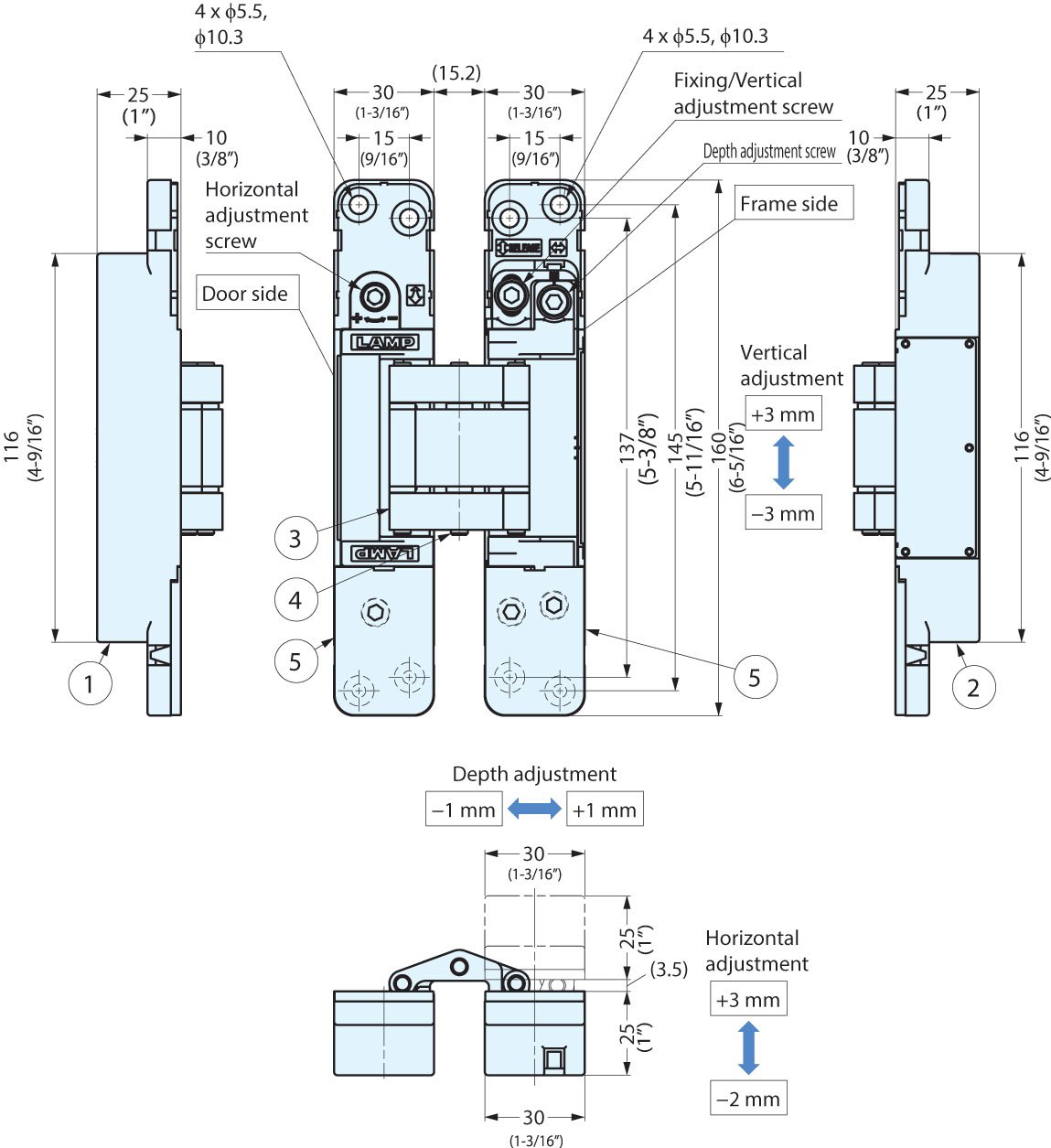

  • Vertical, horizontal and depth adjustment possible post-installation (3way)
  • Can be split into two parts (one for the frame and one for the flap) making installation easy
  • Temporary holding feature: can temporarily be hung and hold position without being affixed with screws. This makes installation much easier.
  • Custom colors available on request. Please contact us for details.
  • Passed a 300,000 open/close cycle test in private testing.tely)



Search Tool

Instruction Manuals
HES3D-E160 Instruction Manual - 1317_2_hes3d_e160_e.pdf
